CNN Kernels & Filters - 3 Minute ML Lecture

🤔 What are Kernels & Filters?

A kernel (or filter) is a small matrix that slides across an image to detect specific features like edges, corners, or textures.

Kernel sliding across image performing convolution

Think of kernels like specialized magnifying glasses: Imagine you have different magnifying glasses, each designed to spot specific things. One highlights horizontal lines, another finds vertical edges, and another detects corners. That's exactly what CNN kernels do - each one is trained to find different patterns!

Why kernels work: Instead of looking at individual pixels, kernels examine neighborhoods of pixels together. This lets them detect meaningful patterns like "this area has a strong vertical edge" or "this region is blurry."

# Simple 3x3 edge detection kernel

kernel = [[-1, -1, -1],

          [-1,  8, -1],

          [-1, -1, -1]]

🔍 Key Terminology: Stride, Padding & More

Different stride values change how the kernel moves

Stride - How Big Steps the Kernel Takes:

Stride = 1: Kernel moves 1 pixel at a time (detailed scan)
Stride = 2: Kernel jumps 2 pixels (faster, smaller output)
Think of stride like walking vs. running - bigger strides cover ground faster but miss some details!

Padding - Adding Borders:

No Padding: Output gets smaller than input
Same Padding: Add zeros around edges to keep same size
It's like adding a frame around a photo to preserve the original dimensions!

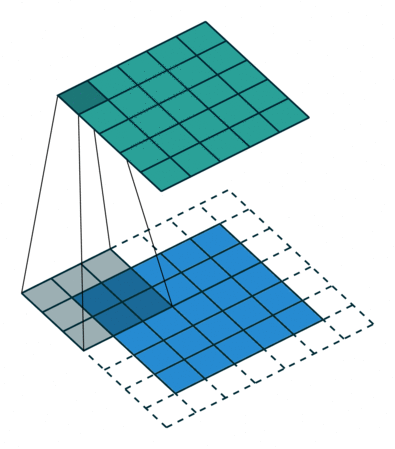

Padding preserves spatial dimensions

Dilation - Spreading Out the Kernel:

Dilation adds spaces between kernel elements, letting you see a wider area without more parameters. It's like using a wider-angle lens on your magnifying glass!

# Output size calculation

output_size = (input_size - kernel_size + 2*padding) / stride + 1

# Example: 28x28 input, 3x3 kernel, stride=1, padding=1

output = (28 - 3 + 2*1) / 1 + 1 = 28x28

🚀 Common Filter Types & Their Magic

Different kernels detect different features

Edge Detection Filters: These are like outline detectors. They highlight boundaries between different regions in an image.

Blur Filters: These smooth out details by averaging neighboring pixels. Think of them as the "soft focus" effect in photography!

Sharpen Filters: These enhance edges and details, making images look crisper. They're the opposite of blur filters!

# Popular filter examples

edge_filter = [[-1, -1, -1],

               [-1,  8, -1],

               [-1, -1, -1]]

blur_filter = [[1/9, 1/9, 1/9],

               [1/9, 1/9, 1/9],

               [1/9, 1/9, 1/9]]

sharpen_filter = [[ 0, -1,  0],

                  [-1,  5, -1],

                  [ 0, -1,  0]]

💡 Receptive Field & Practical Tips

🎯 Receptive Field - How Much Each Neuron "Sees":

Layer 1: Sees 3x3 pixels (local features like edges)
Layer 2: Sees 5x5 pixels (combines edges into shapes)
Layer 3: Sees 7x7 pixels (recognizes objects)
Deeper layers: See larger areas, detect complex patterns

🎯 Quick Implementation:
